A review of the progress made by PESSL III

 PESSL INSTRUMENTS GmbH

Pessl Instruments GmbH has been producing reliable measuring instruments for 38 years and has developed various devices for the measurement and monitoring of different agricultural parameters, being one of the leading IoT providers for agriculture offering innovative and cost-effective solutions for more efficient farm management. Participating in the IPM-Popillia project gives PESSL a chance to put into the farmer's disposal all its expertise on sustainable agriculture and fulfill its mission to offer high-added value and customized cost-effective solutions and contribute to global environmental protection.

ABOUT THE PROJECT

The IPM-Popillia project, funded by @EU Horizon 2020 research and innovation program, started in September 2020. Our expert team has been working on a monitoring device with the aim of P. japonica detection and monitoring.

The insect traps our team evolved include electronic devices with 10 MP lenses on the top of the housing and are self-sufficient through a battery and a solar panel. The traps are equipped with sensors collecting climatic data, like temperature, relative humidity, or wind, which will be used to get more detailed insight into the flight behavior of P. japonica. In addition, the trap system is equipped with a lure, attracting the target species to enter the trap system. After entering the trap, insects get fixed and photographed. The photos serve as a base for the development of an automatic detection tool specifically for P. japonica. Deep learning systems using artificial neural networks are training the system to detect and separate the targeted insect from non-targets, check more info in our previous blog post.

The prototype traps produced by PESSL were planned to be installed in high-risk areas of the first introduction of P. japonica, to evaluate the innovative monitoring tool under field conditions. In addition to the remote-controlled evaluation, catches of these traps are planned to be evaluated also manually by the experts. The results of these monitoring efforts will be then compared with automated monitoring results and will provide feedback for optimizing the detection software.

PROGRESS OVER THE PAST MONTHS

Ten prototype traps for P. japonica have been produced and installed in 2022 in France, Italy, and the Azores. They were shipped beginning of June 2022 to those different locations and have been installed by our partners there. So a big, big THANK you to all our partners supporting us in those trials: :

• Nelson Simões & Màrio Brum Teixeira and their team on the Azores,
• Giovanni Bosio, Michelangelo Regis, and their teams in Piemonte,
• Luca Jelmini & Michela Meier and their team in Ticino, as well as
• Nathalie Gourbeau from Service Régional de l'Alimentation (SRAL) in Strasbourg

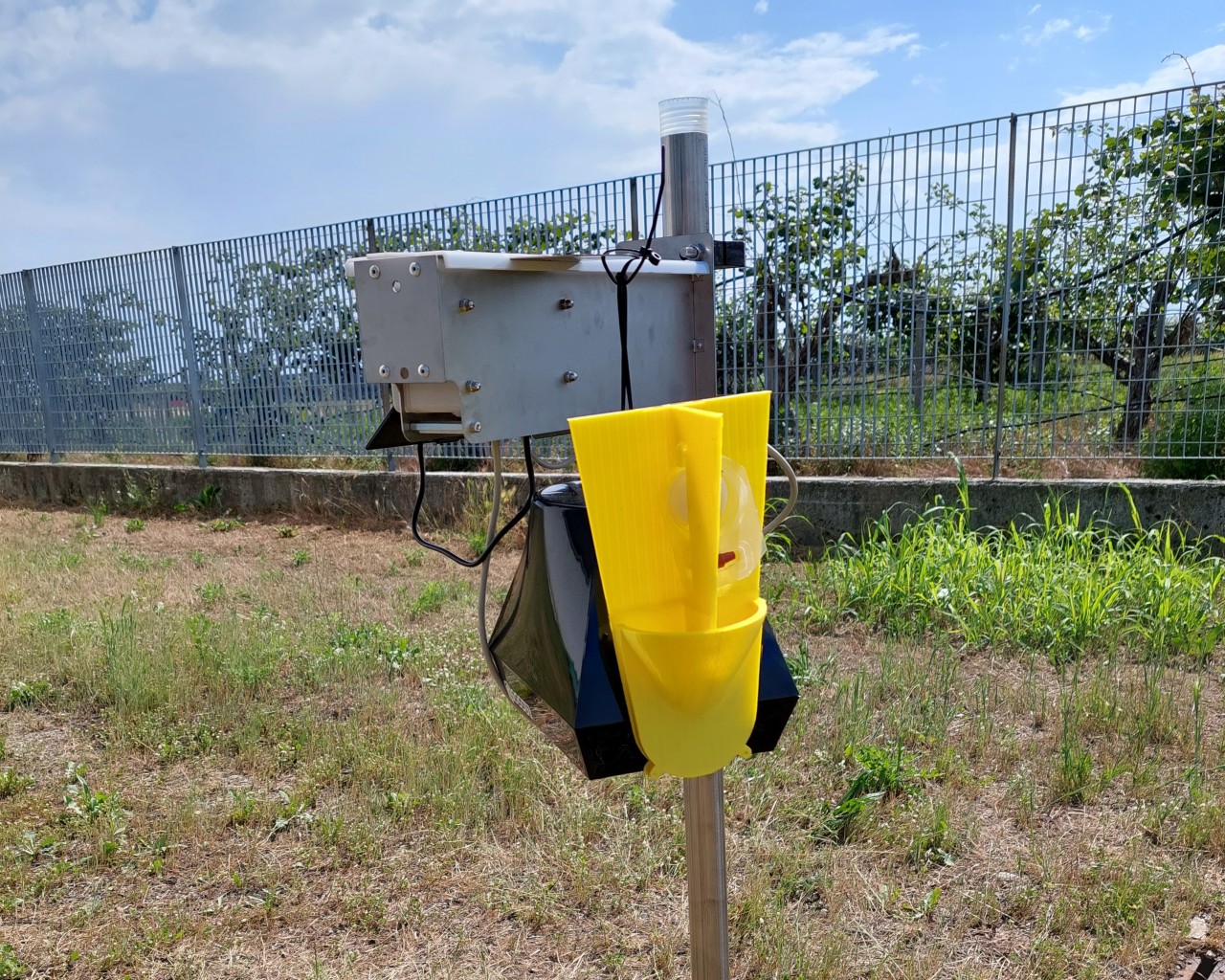

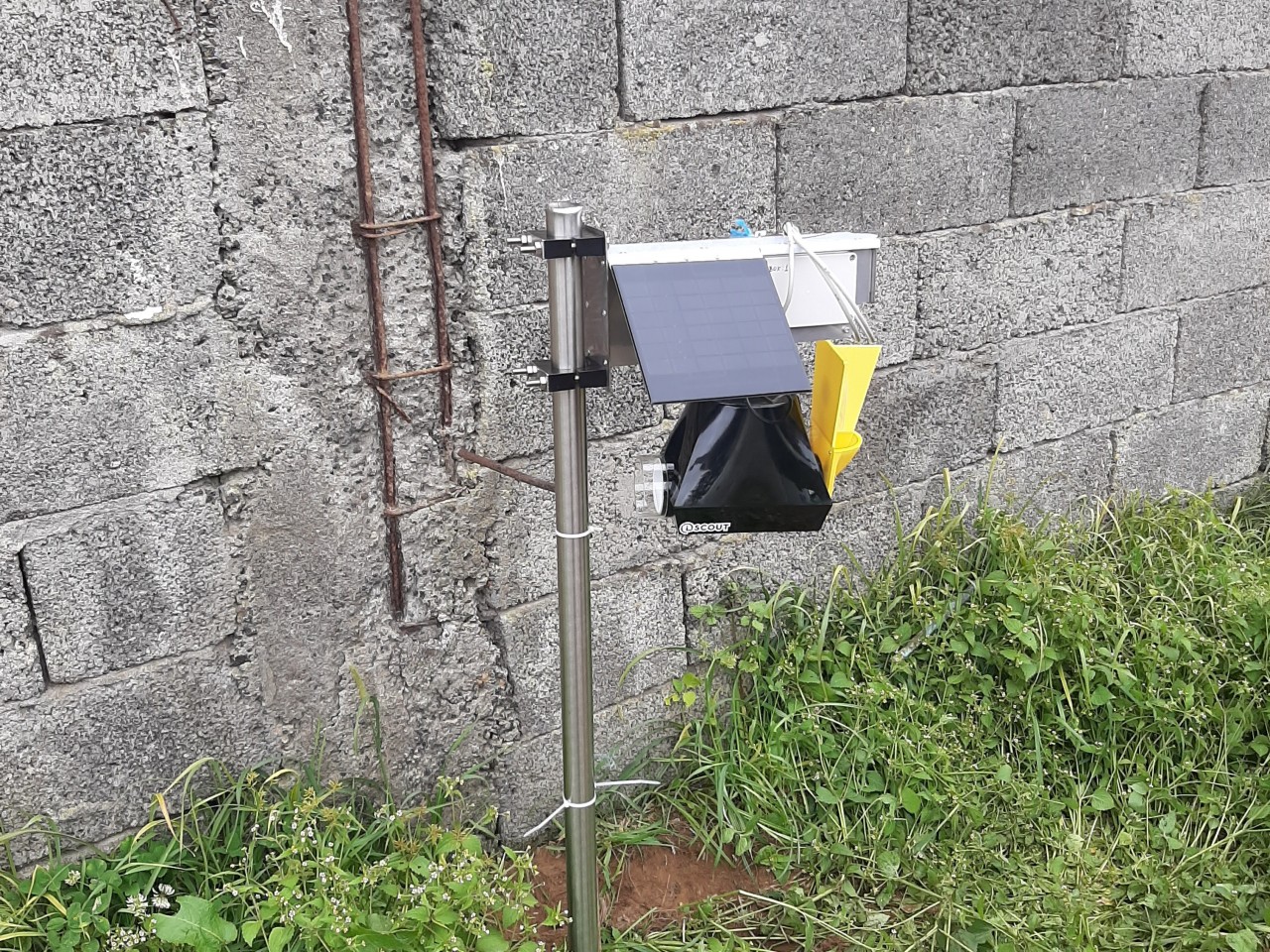

Photos: iSCOUT Installation on field site in the Azores and in France.

We followed two approaches:

• Comparison of the standard used monitoring devices with the iScout system (evaluation of catches and correlation).
• Collecting pictures of P. japonica in traps for labeling and base of the machine learning approach on species level.

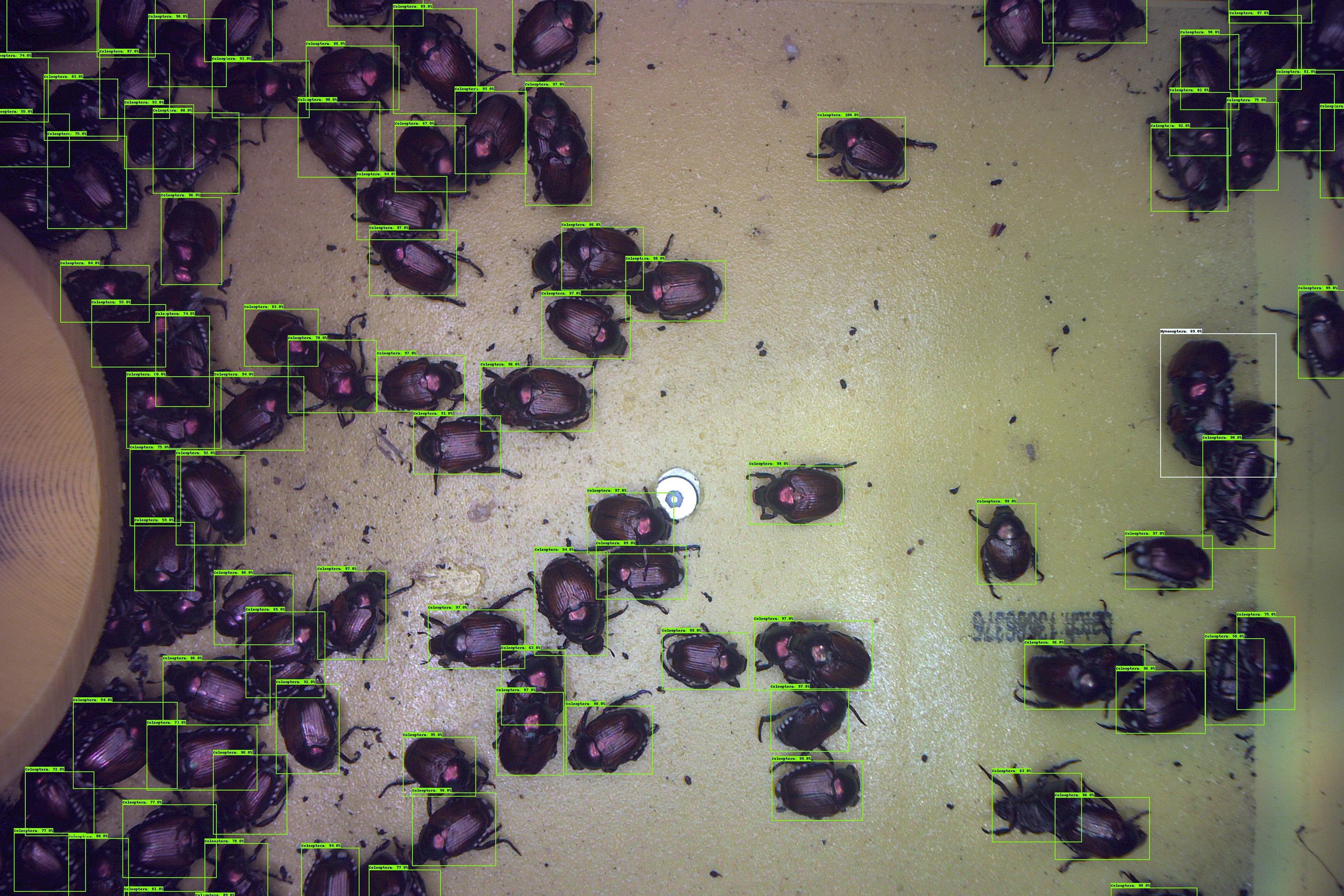

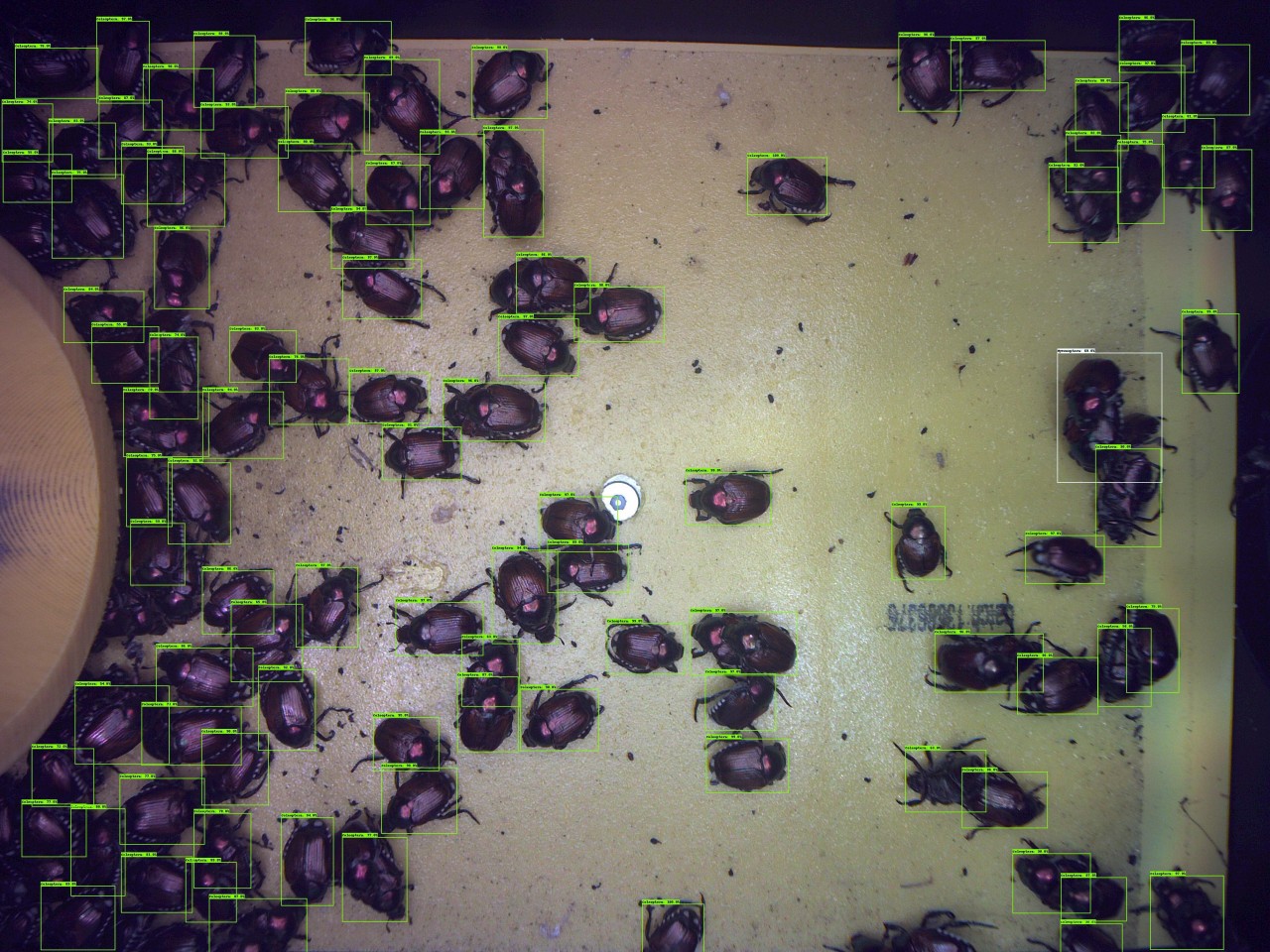

In the images above, the original and labeled photos are shown. The localization became more precise and the order classification of P. japonica as Coleoptera more stable (more insects were recognized and fewer mistakes in the order classification were performed).

WHAT'S PLANNED FOR THE FUTURE?

• Analyzing results of the evaluation between iScout devices and standard monitoring trap devices.
• Labeling of photos collected in 2022 and training the AI for species level.
• Getting information about the mass production ability of the specific ADD-On for production in higher capacity.
